Extramate multi-purpose articulated electric carriers
More effective
Safety and effectiveness should be decisive terms to consider in your investment.
The Extramate electric articulated carrier can lift 300kg from the ground to a height of 500mm.

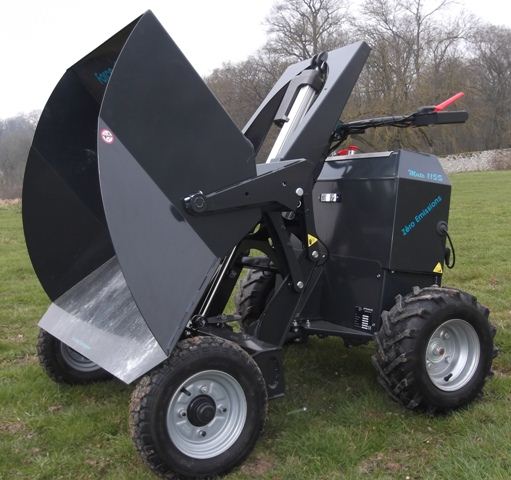

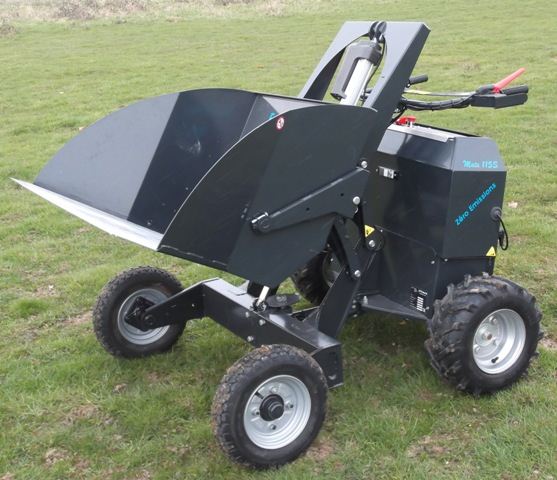

With the bucket raised, the load height is 500mm from the ground. This is a very convenient height for any manual unloading. Again, reducing the risk of manual handling injuries.

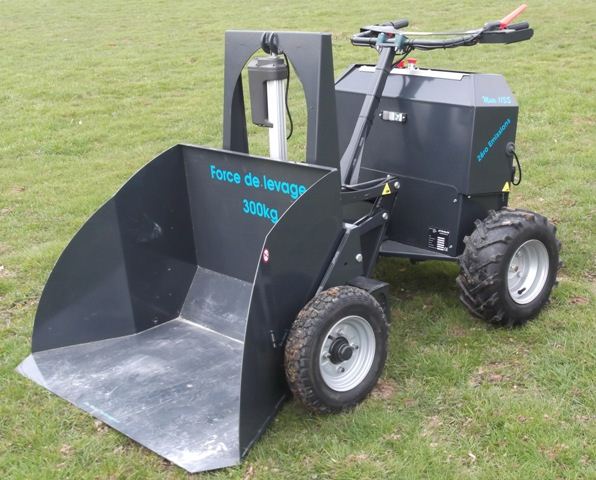

The electric articulated carrier is very convenient to load materials or large objects from the ground. To load materials into a conventional wheel barrow involves repetitive lifting operations for the workforce. With the electric articulated carrier, you simply push the material in the lowered bucket. For loose materials such as the snow or earth, you can load the bucket using the 180kg traction force of the machine. In the same way as a wheel loader.
Productivity
The electric carrier greatly improves the productivity of many applications which are made manually, using conventional tools. With a traction force of 180kg, the electric articulated carrier can easily transport a load of 300kg on varied terrain, even that with a slope of up to 17%.
When fitted with standard 86Ah batteries, there should be sufficient power to last a working day in most operations. It is possible to travel approximately 5Km with the standard batteries on level terrain. If you need more capacity, or if you work with slopes, larger battery capacities are available up-to 150Ah. For example, the larger capacity would be useful to transport large quantity of materials such as a complete truck of earth to transport in a garden.
The electric articulated carrier could also be loaded by a mini excavator or a skid steer and used as a large capacity dumper.
Easy to handle

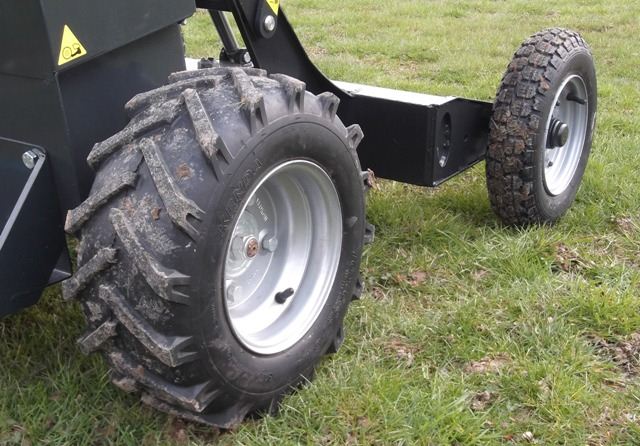

The Extramate articulated carrier is easy to control. The articulation and the oscillation make the carrier very easy to handle. When turning, there is no tyre drift, reducing the risk of damage to the ground, or the grass. You can turn the carrier and target the bucket in a new direction without moving the machine. The rear wheels follow in the same track as the front wheels.
Forward/reverse direction and raising/lowering of the front attachment are selected on the handlebar. Other commands are on the dash board within easy reach.
Low consumption
The Extramate articulated carrier is 100% electric. All movements and operations are made electrically. Your energy cost should be less than £0.80 per working day. The charging time is around 5 hours thanks to the 15A battery charger. The battery charger is on board. You simply plug the charger cable into a standard 13A domestic supply.
Return on investment
The maximum cost for the standard spec of the electric articulated carrier should be in the region of £8 per day, or £160 per month. Taking into account the potential increase in productivity and reduction of Health & safety risks to your workforce, the return on your investment should be very short.
Versatility
Extramate offer many front attachments dedicated for your application.
Semi-delta bucket. (the most versatile bucket)
Transport bucket . (with a largest capacity useful for light materials)
Forks for straw/hay bale (high density up to 180kg)
Grapple for nursery container
Grapple for barrel
Dozer blade
Broom
Bucket to transport liquid materials
Drawbar to Manoeuvre trailer or caravan
Other attachments.
There are two possible couplings, offering varied possibilities for attachments. One is the same position the bucket connection. The second one is located just in front of the wheels for wider attachments.
The design department of Extramate can study/develop attachments specific to your application.
Green Machine
The electric articulated carrier is 100% electric. There are no gas emissions. Work inside buildings and poorly ventilated areas is no problem.
The AGM Batteries do not produce emissions during the charging period. So the batteries may be charged wherever you can obtain electric 230V energy. The Extramate does not require a special charging station.
The electric articulated carrier is almost silent in operation. This is very convenient for many worksites as it does not disturb customers, livestock etc.
The electric articulated carrier is not heavy, therefore it can be used in many sensitive areas without the risk of surface damage. It is possible to mount low ground pressure front wheels for special applications.
Spécifications
100% Electric
85 to 150Ah Battery capacities.
180kg Traction Force.
300kg Lifting force.
0 to 0.5m bucket bottom height
5km/h maximum speed
2 tones: static load for the frame simulation
4 patents for invention.
Quality
All components have been selected and tested to meet the demands of various probable conditions. Dust, humidity, load, vibrations.
All components have been tested in the workplace. All components are sourced from reputable manufacturers from Europe or America.
Each pin is mounted with a bushing. Some parts used in the construction of the Extramate are produced from special steel.
The Extramate is coated with Epoxy paint to maintain a long life protective coating.
Services
The electric vehicle needs less maintenance than a vehicle powered by a conventional engine. In general, an annual service is sufficient. However, routine lubrication and general inspections are necessary depending upon usage.
The acid lead batteries will require replacing every 500 cycles. Usually this is about every 2 or 3 years.
Extramate maintains a stock of spare parts in order to repair your machine quickly should you suffer any form of breakage.
Local service staff receive training from Extramate, in order to maintain and repair your machine correctly.
